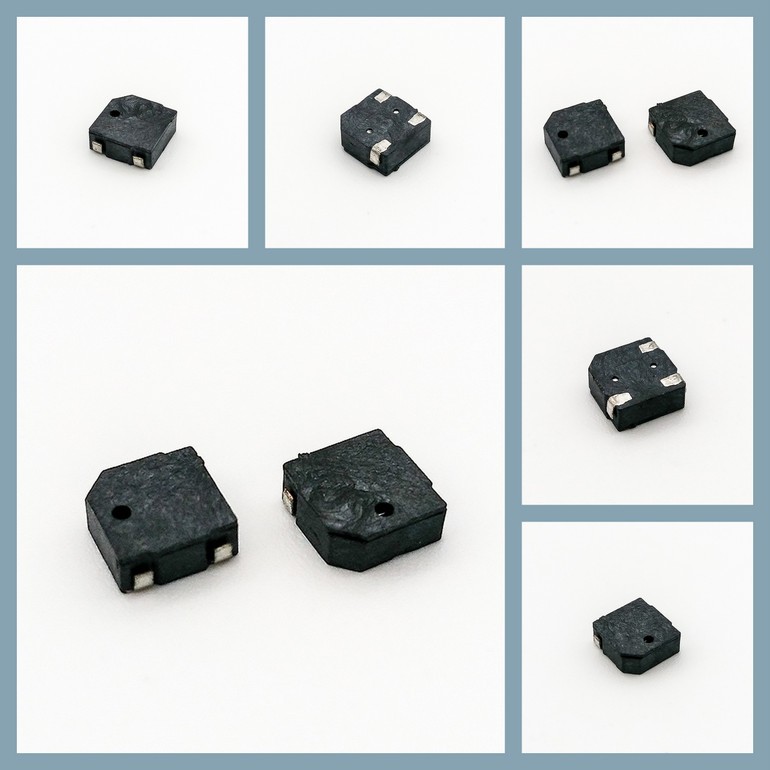

Smallest ultrathin electric buzzer smd Magnetic Buzzer lCP 3V high sounds buzzer

Product Categories
Dongguan TaiMi electronics technology Co。，ltd
Contact Now

Smallest ultrathin electric buzzer smd Magnetic Buzzer lCP 3V high sounds buzzer

Brand Name : Laimi

Model Number : TM-050020

Certification : ROHS/REACH

Place of Origin : CHINA

MOQ : Negotiable

Price : Negotiable

Payment Terms : Western Union, MoneyGram, T/T , Paypal

Supply Ability : 1000000pcs/Month

Delivery Time : 2 weeks

Packaging Details : safety packing

Housing Material : LCP

Frequency : 4000HZ

sounds : min 85db

voltage : 3V

Coil Resistance : 12ohms

Current : MAX 110mA

Contact Now

Smallest ultrathin electric buzzer smd Magnetic Buzzer lCP 3V high sounds buzzer


As this product is not protected from foreign material entering, please make sure that any foreign materials (e.g. magnetic powder, washing solvent, flux, corrosive gas) do not enter this product in your production processes. The functional degradation (e.g. SPL down) may occur if foreign material enter it.

Smallest ultrathin electric buzzer smd Magnetic Buzzer lCP 3V high sounds buzzer



1. SMD Magnetic Buzzer Description


Rated Voltage (Vo-p) 3
Operating Voltage (Vo-p) 2~5
*Rated Current (mA) ≤100
Coil Resistance (Ω) 12±3
*Sound Output at 10cm (dB) ≥78
Resonance Frequency (Hz) 4000
Operating Temperature (℃) -40~+105
Storage Temperature (℃) -40~+120
Weight (g) 0.12
Housing Material   LCP
RoHS   Yes
MSL(Moisture Sensitivity Level)   5a(≤30℃/60%RH 24H Floor life)
Quantity (pcs) 25000
Gross Weight (kg) 8.5
Carton Size   34.5*35*36.5cm

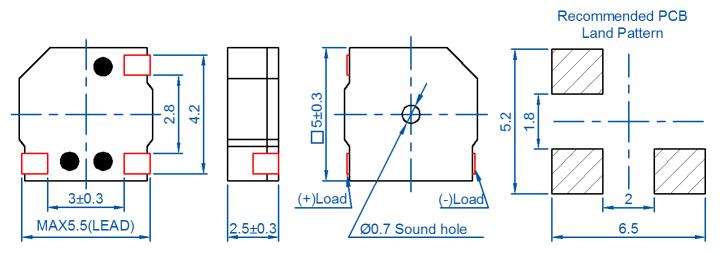

1. SMD Magnetic Buzzer Dimensions



Smallest ultrathin electric buzzer smd Magnetic Buzzer lCP 3V high sounds buzzer

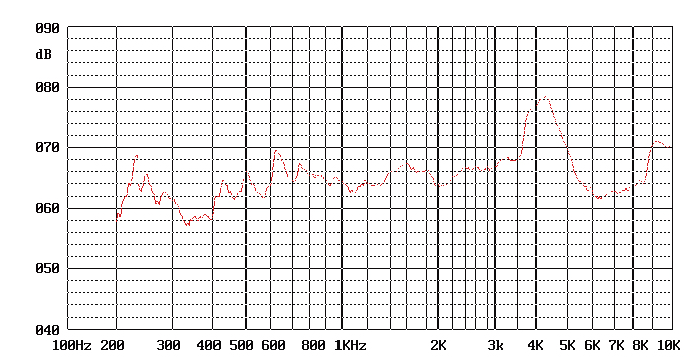

3. SMD Magnetic Buzzer Frequency



Smallest ultrathin electric buzzer smd Magnetic Buzzer lCP 3V high sounds buzzer

4. SMD Magnetic Buzzer Packing



Smallest ultrathin electric buzzer smd Magnetic Buzzer lCP 3V high sounds buzzer
